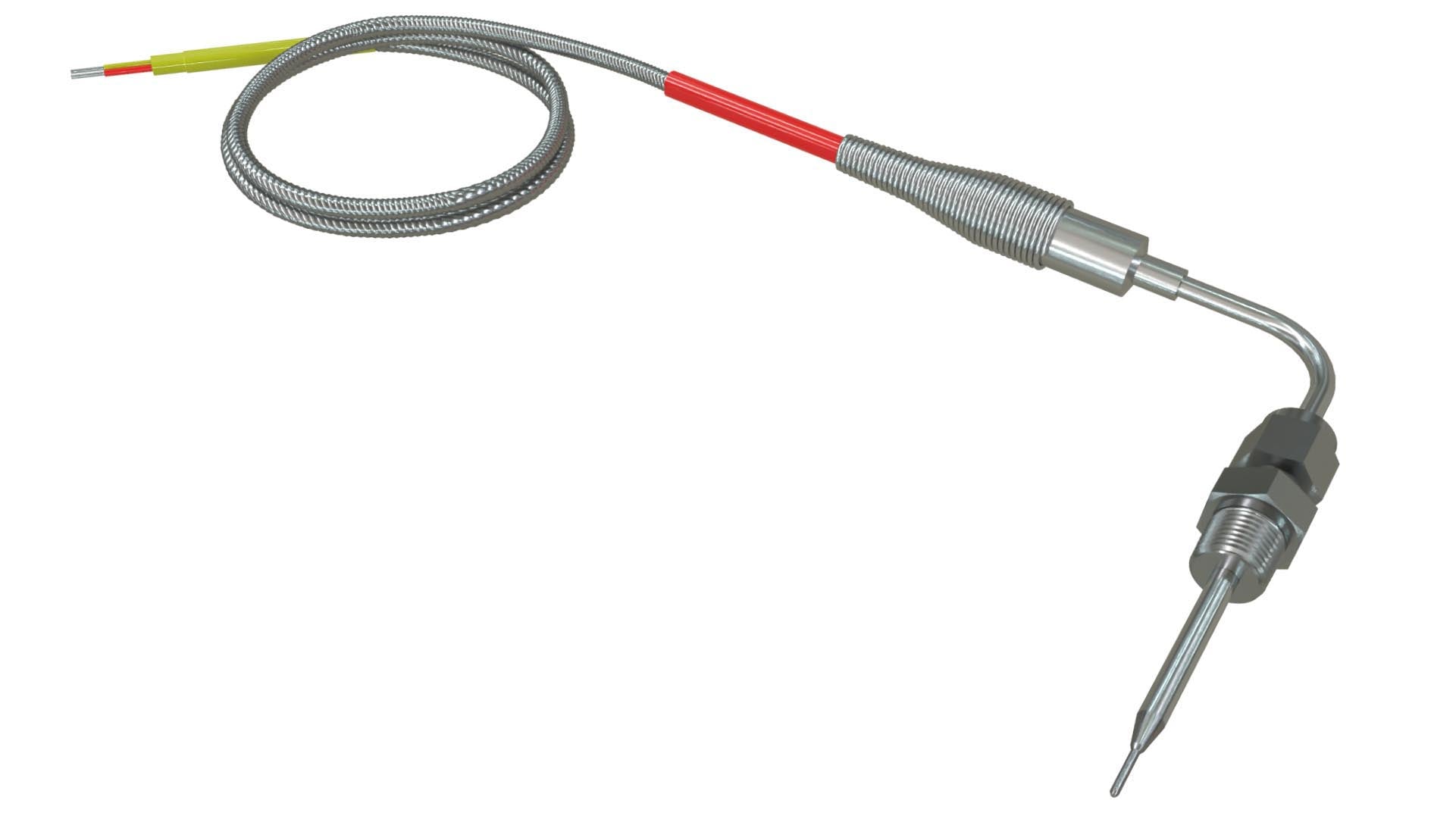

Air Intake Temperature Probe Thermocouple Blower, Supercharger
Air Intake Temperature Probe Thermocouple Blower, Supercharger
- Probe diameter 1/8 inch (0.125 inch)
- Enclosed Tip Sensing Junction (Fast Response)
- Response time constant: 250 milliseconds

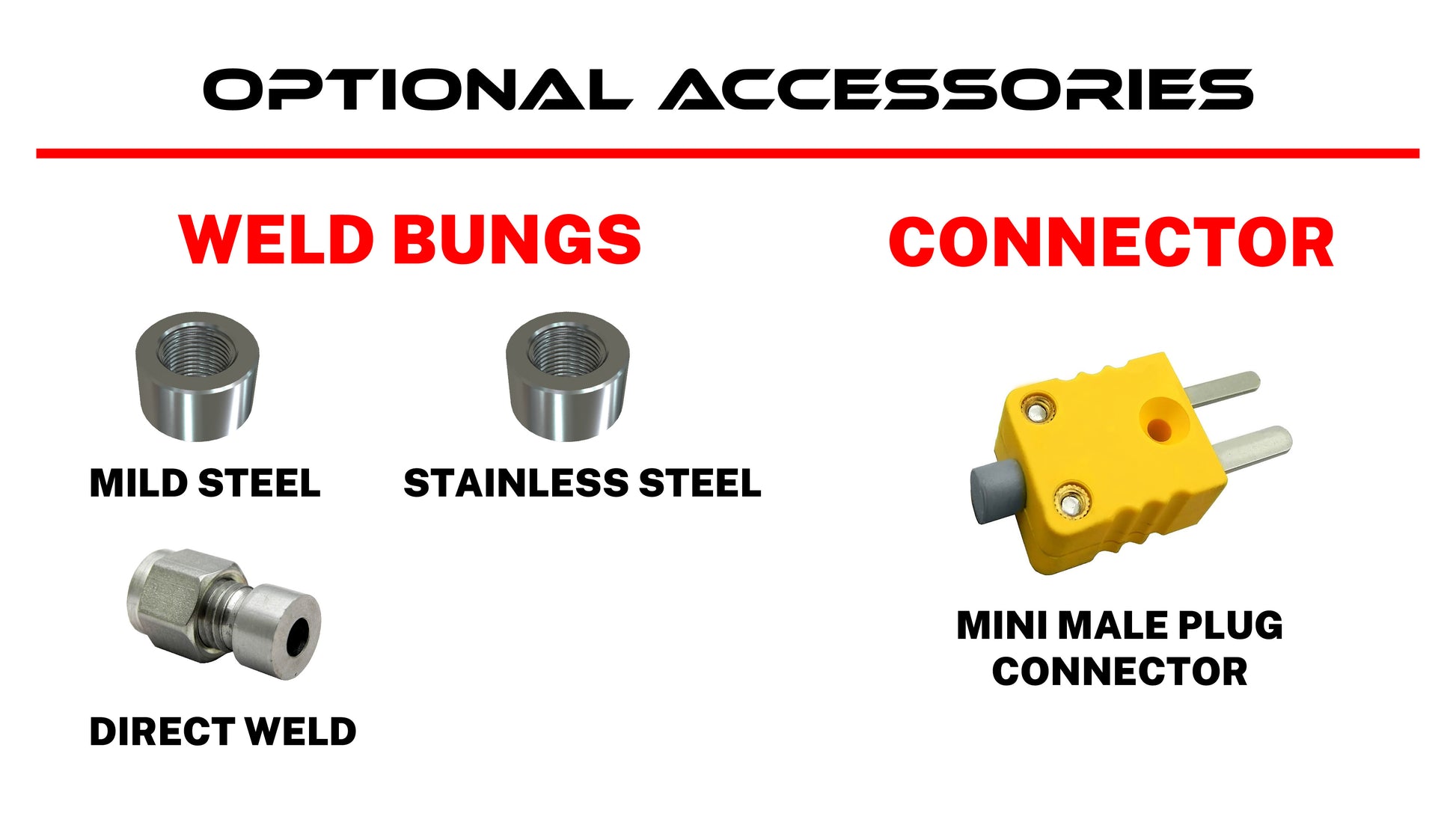

- Includes 316 SS adjustable compression fitting
The Air Probe Sensor is specifically designed for use in applications requiring a temperature control or indication. This probe has been designed to withstand corrosive environments found in marine and process industries. It will also withstand the rigors of automotive, trucking, agri-vehicle, racing, tuning, and testing applications.
Made in the USA from superior materials, designed to withstand highly corrosive saltwater environments and even the most extreme racing conditions. The exposed sensing tip is recommended for measurements of air and gases.

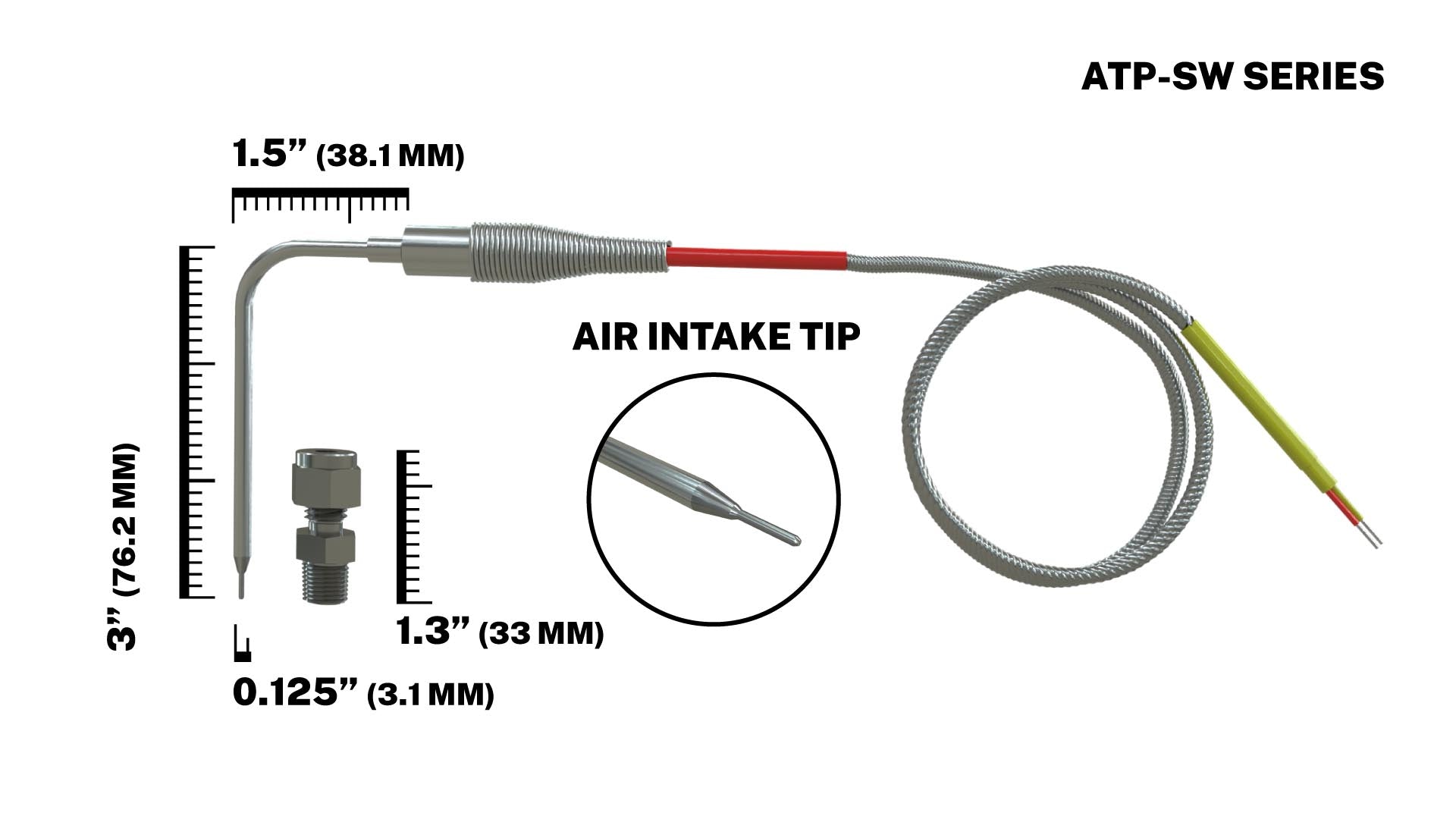

The Air Probe is capable of surviving extreme vibration and heat up to 2200°F (1200°C). Making it an excellent choice for intake and exhaust systems requiring a high level of reliability and ruggedness. The Air probe will fit most air intake systems from approximately .750 inch diameter up to about 4 inch diameter with nominal installation modifications. The Air probe is 0.125" diameter (3 mm) with a 90-degree bend to accommodate tight mounting locations. An adjustable (316 Stainless Steel) 1/8" NPT compression fitting adapter is included. The Air probe cable lead length is 6 feet (2 meters).
The probe cable is over-braided in stainless steel for heavy-duty abrasion resistance. The signal wires are FEP insulated. Designed to deliver high performance, high temperature measurements, reliably and consistently in the most extreme operating conditions.
The Air probe is the sensor of choice for Marine as well as cold air intakes, furnace exhausts and R&D and test labs. The EGT probes can be used for many different applications, including, but not limited to, Marine, Agricultural, Process Management and Engine Management Systems. We will build custom probes for you OEM and conversion requirements, 10 units to 1000.
Documents & Downloads
ATP-SW Swaged Air Temperature Probe Data Sheet
EGT Probe Mounting Instructions
ATP-SW-K-050-A-030-072-B-0 3D STP Drawing File
