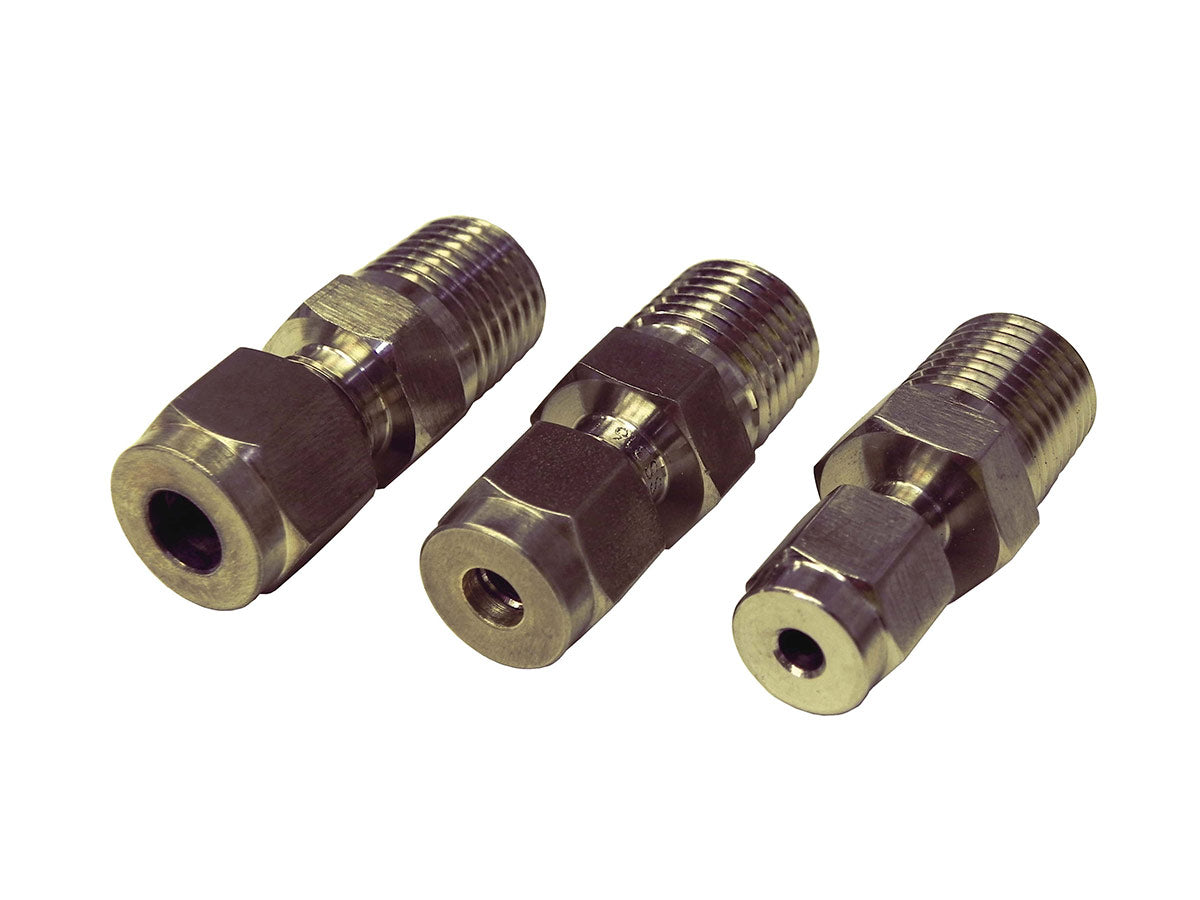

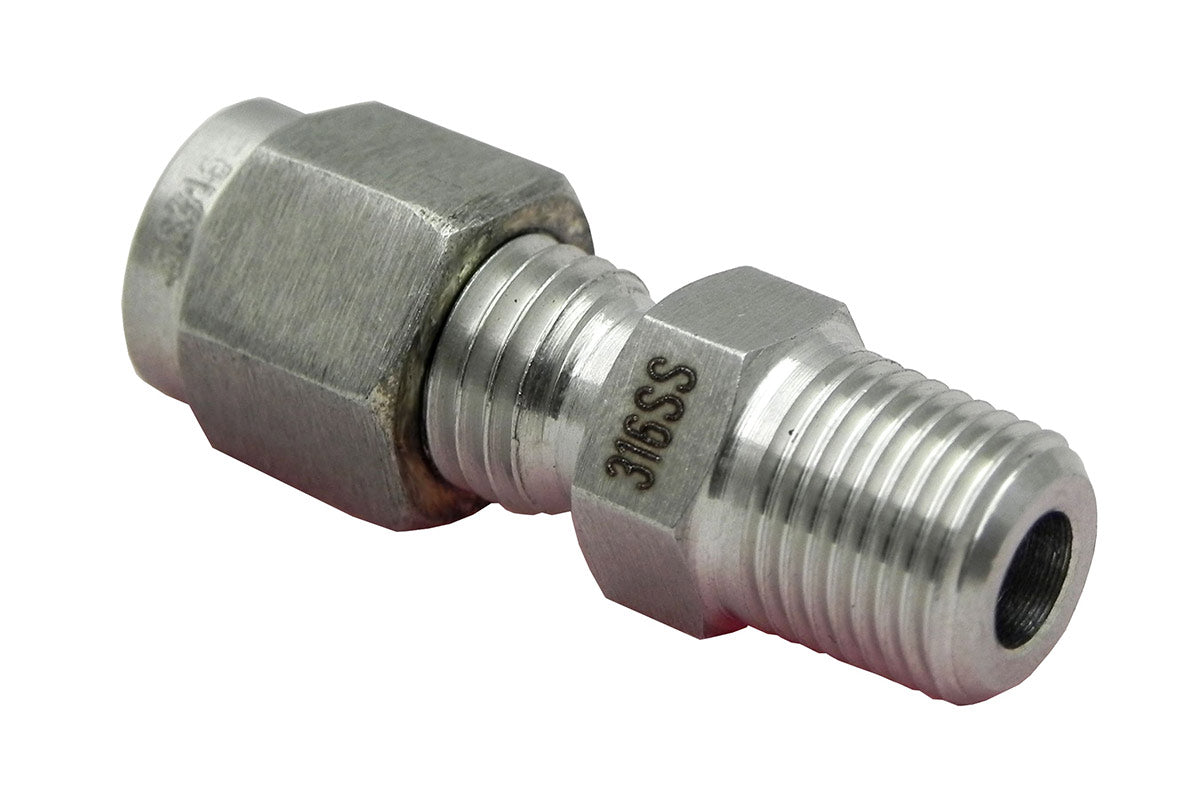

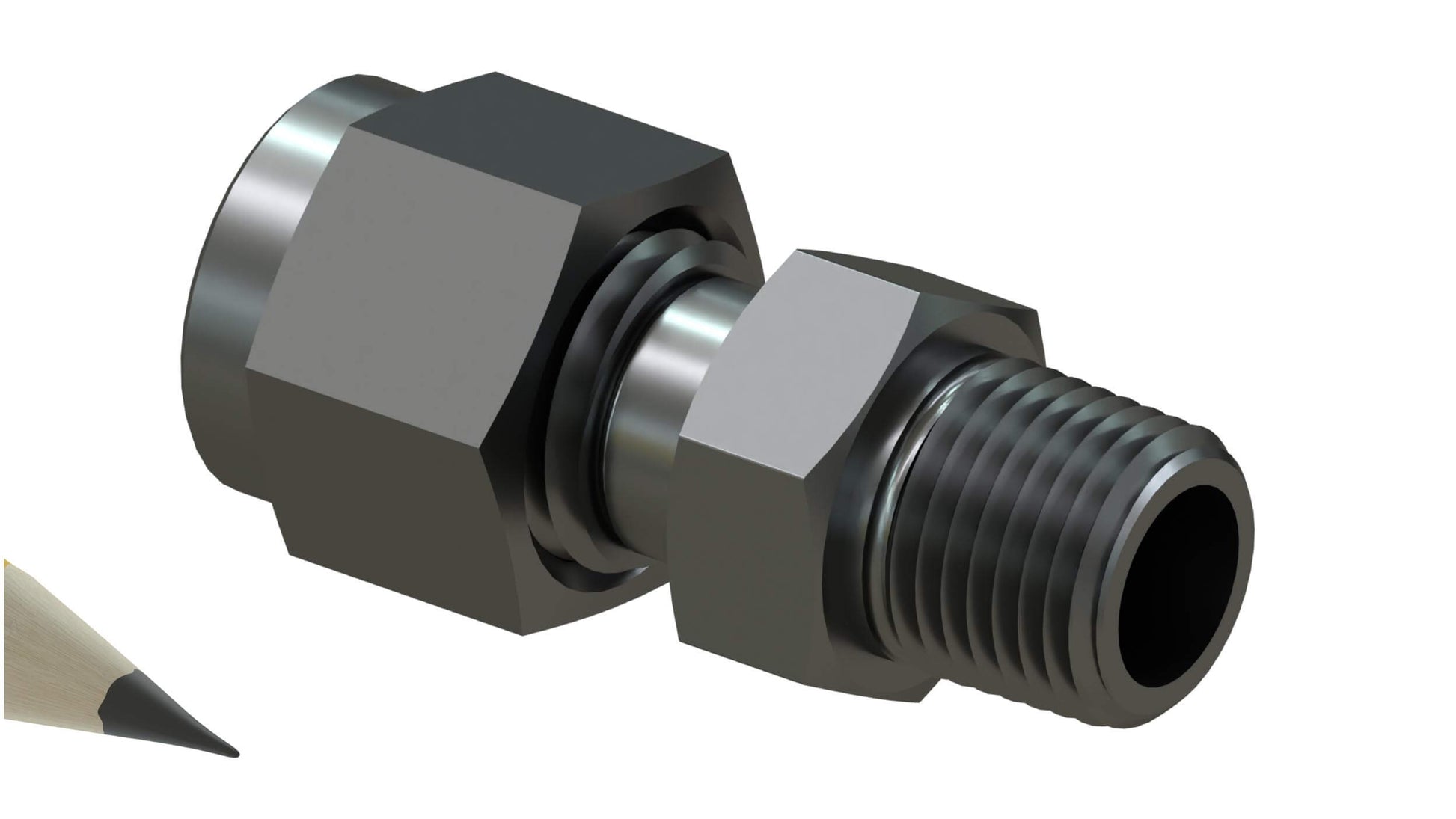

EGT Probe Compression Fittings - 1/8" NPT Thread

$12.25 USD

Sale Sold out

Availability: In Stock

Compression Fitting Bore Thru Size for 1/8" (.125) OD Thermocouple Probe for 3/16" (.187) OD Thermocouple Probe for 1/4" (.250) OD Thermocouple Probe

Compression Fitting Male Thread Size 1/8"-27 NPT

Compression Fitting Material 316 Stainless Steel

Quantity

If you would like to use your your own UPS, FedEx or DHL account number for shipping, contact us before placing an order!

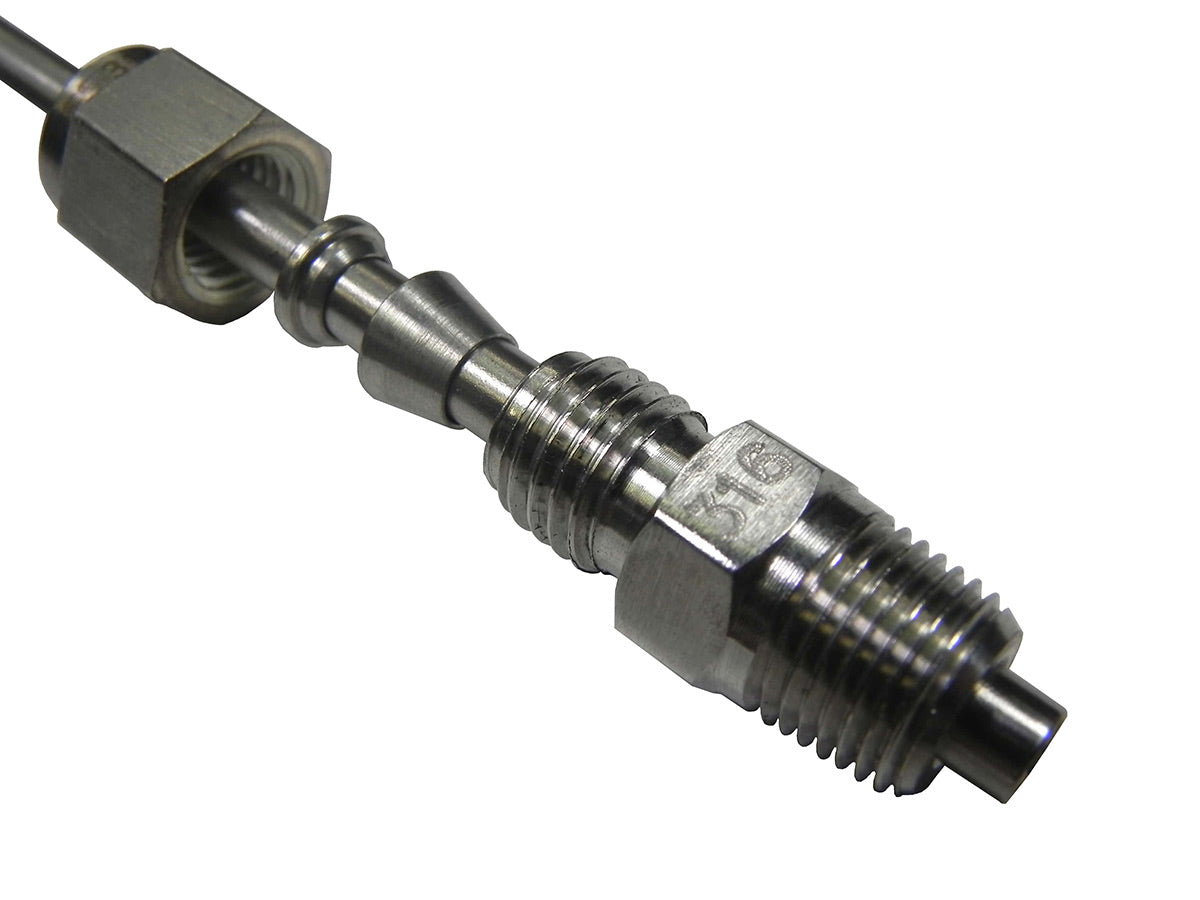

• Adjustable 1/8" NPT Male Thread Compression Fittings for various diameter EGT Probes
• Made from 316 Stainless Steel

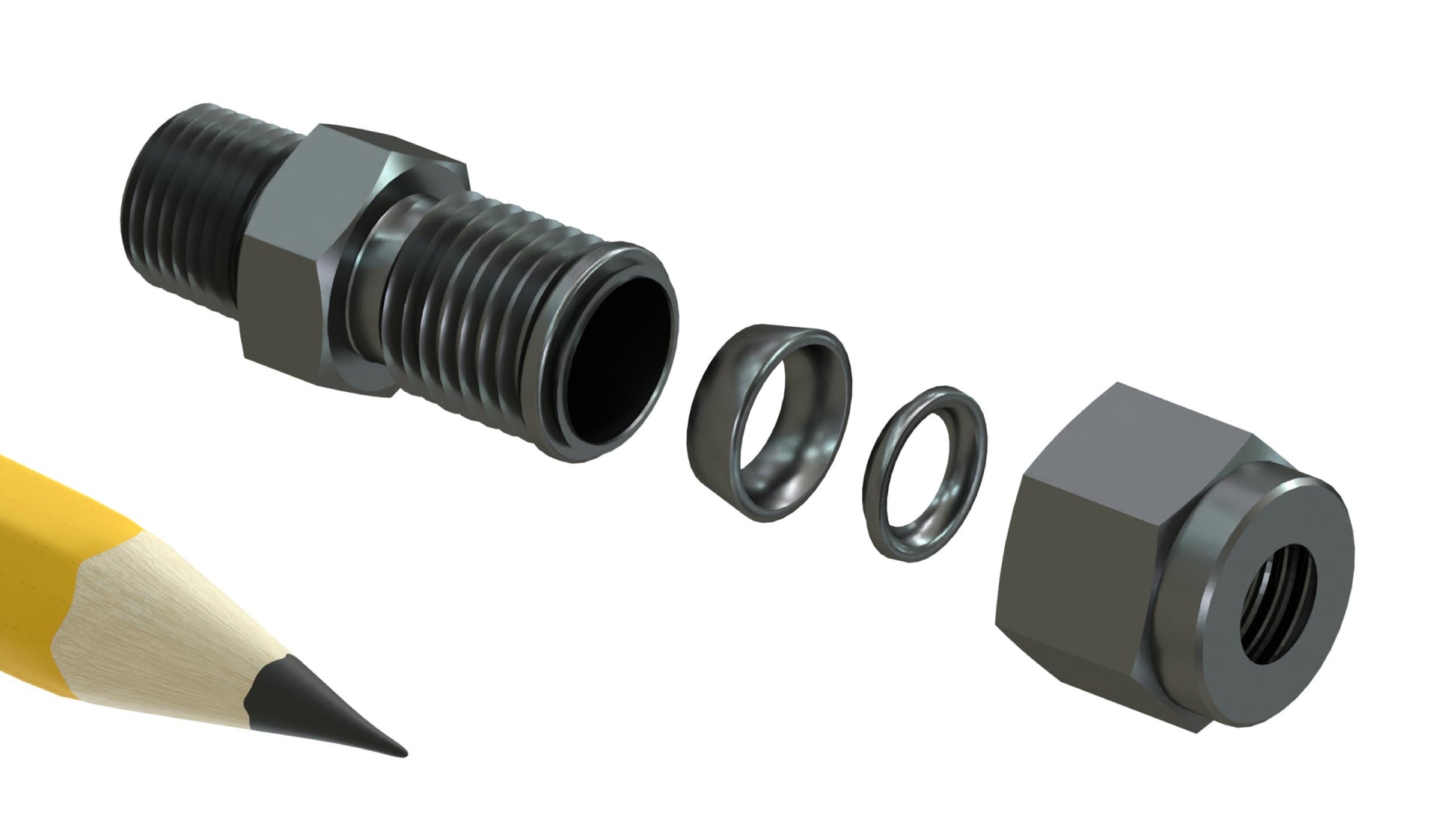

• Includes ferrules
• 1/8 inch NPT male thread
• 27 threads per inch
• Made in the USA

316 stainless steel for excellent service life withstanding high temperatures and thermal cycling over long periods of time. Compression Fittings available for EGT Probe diameters of 1/8", 3/16", or 1/4".

Ways to Install:
1. Thread into a 1/8 inch NPT weld bung adapter
2. Welded directly to the header / exhaust outlet
3. Drill & tap an 1/8 inch NPT hole, then thread it right in (max torque 7 lb-ft (10 Nm))

Additional questions about pricing or assembly? Contact us now to speak to a skilled applications engineer.
