EGT Probe Exhaust Gas Temperature Sensor - Muffler Clamp - 3/16" Diameter

• EGT-MP series
• Probe diameter 3/16 inch (0.187 inch)
• Exposed Tip Sensing Junction (Fast Response)
• Response time constant: 250 milliseconds
• Includes adjustable Muffler Clamp
• Applications: Motor Sports, Marine, Aviation, Power Gen, Research & Development, Alternative Energy, Military

(Recommended for fuel types: Gasoline, Natural gas, Nitrous Oxide, & Alcohols)

The Exhaust Gas Temperature Sensor (EGT Probe) is specifically designed for use in racing, tuning, and testing applications. Our probes are made in the USA from superior materials, designed to withstand rugged racing conditions. The Exposed Tip sensing junction provides immediate response to dynamic temperature changes.

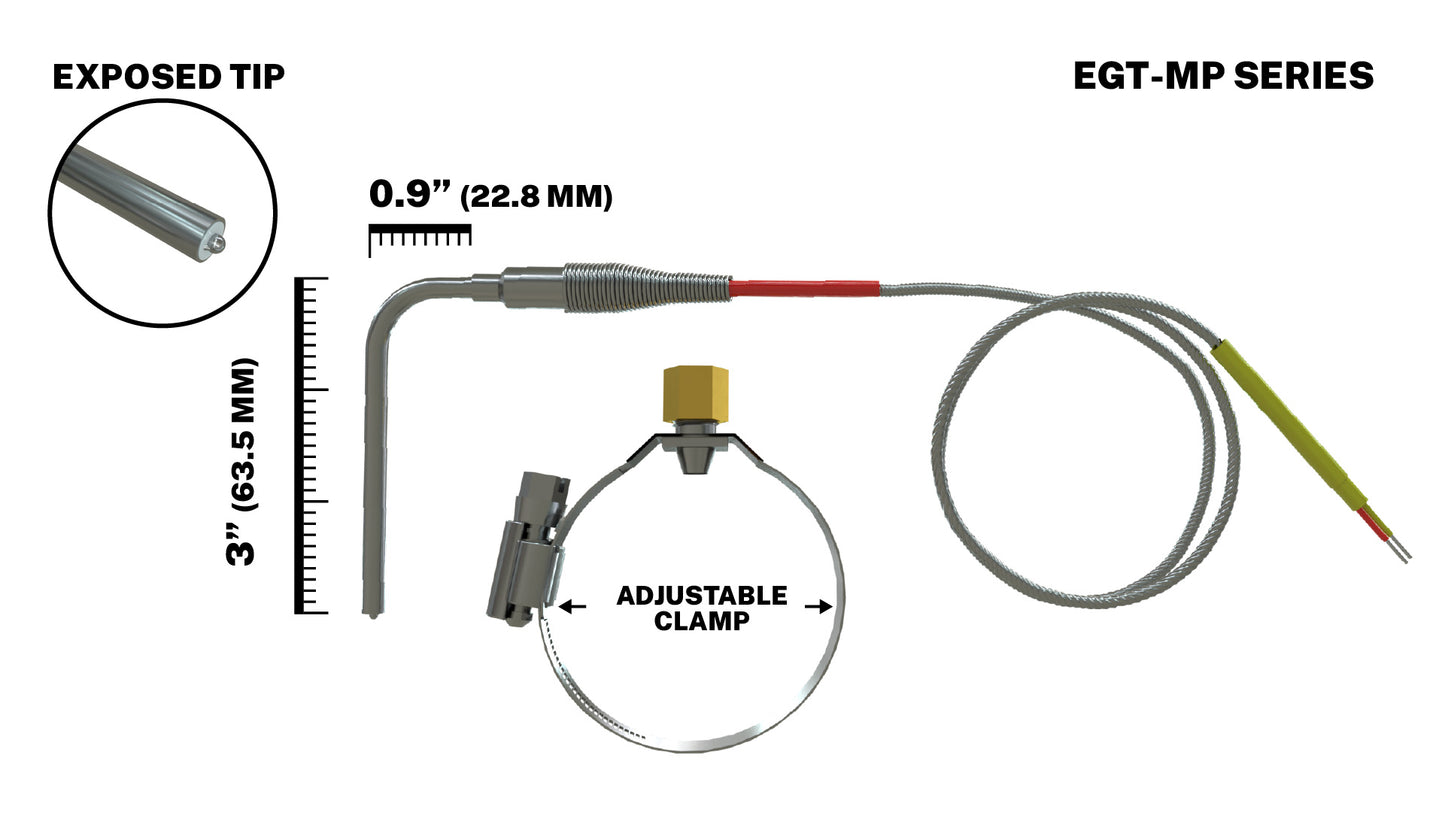

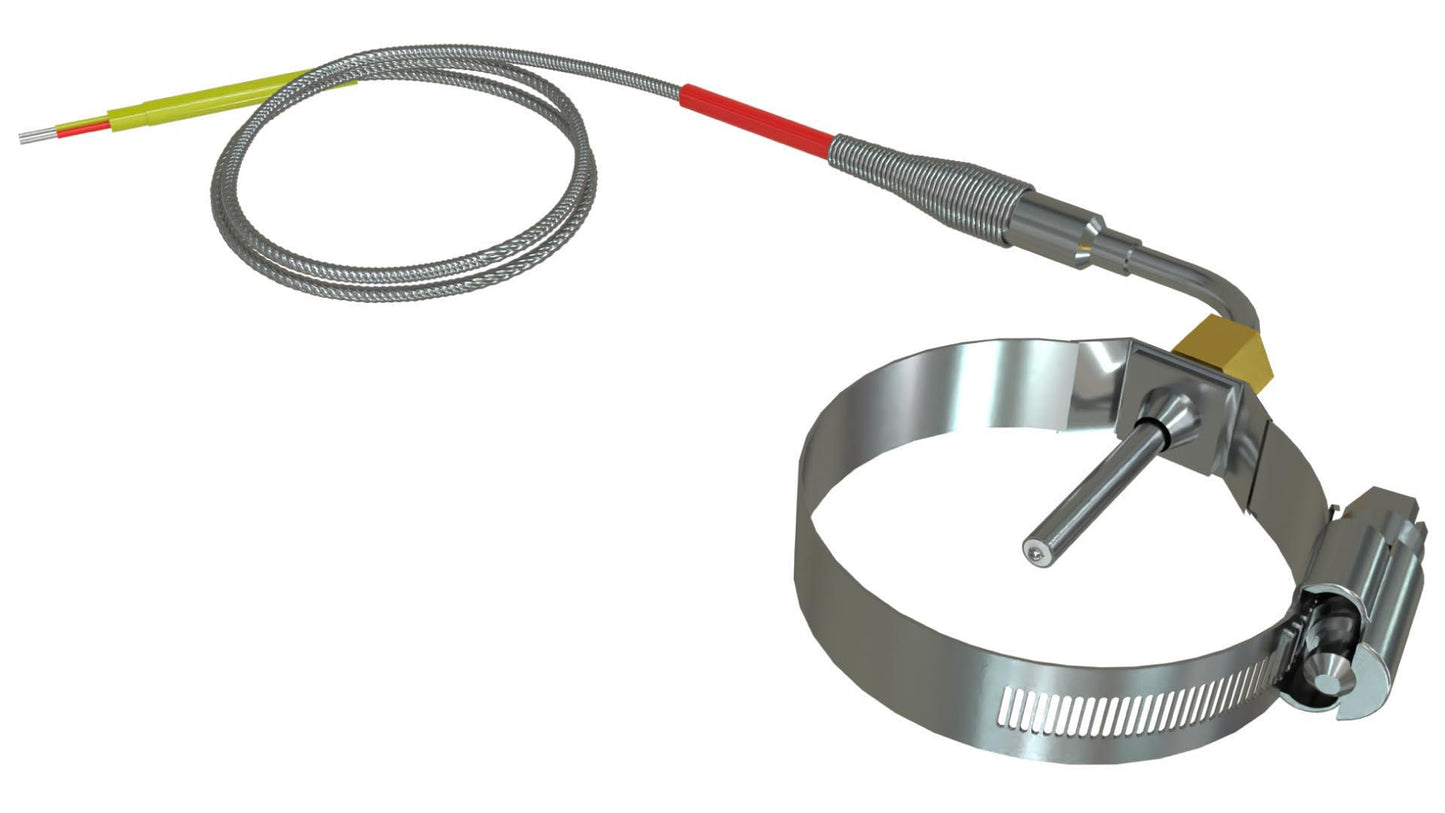

The Muffler Clamp EGT probe is designed for EGT applications that require mounting without a weld bung and compression fitting. The Muffler Clamp EGT probe is 0.187 diameter (4.75 mm) and includes an adjustable metal clamp mounting strap. The EGT probe cable lead length is 6 feet (2 meters). The probe has a 90-degree bend to accommodate tight mounting locations.

Drill hole in header. Insert the EGT probe through the drilled hole and tighten the Muffler Clamp. The EGT probe can be inserted to the required depth and secured by locking the supplied compression fitting.

The probe cable is over-braided in stainless steel for heavy-duty abrasion resistance. The signal wires are FEP insulated. Designed to deliver high performance, high temperature measurements, reliably and consistently.

The high temperature sensors of choice for professional racing teams, R&D test labs, and Enthusiasts. The EGT probes can be used for many different applications, including… but not limited to…Karts, Drag Racing, Formula 1, NASCAR, Off Road, Snowmobiles, and Boat Racing.

Documents & Downloads

EGT-MP Datasheet
EGT Probe Mounting Instructions
EGT-MP Exhaust Gas Probe 90 Degree Muffler Clamp CAD Drawings

View / Download STEP Files
