TSC Sensors

Exhaust Manifold or Pipe Surface Thermocouple Temperature Sensor

$52.00 USD

Sale Sold out

Availability: In Stock

Cable Length 6 ft 12 ft 25 ft

Add a Connector No Connector Connector

Quantity

If you would like to use your your own UPS, FedEx or DHL account number for shipping, contact us!

Fast Response

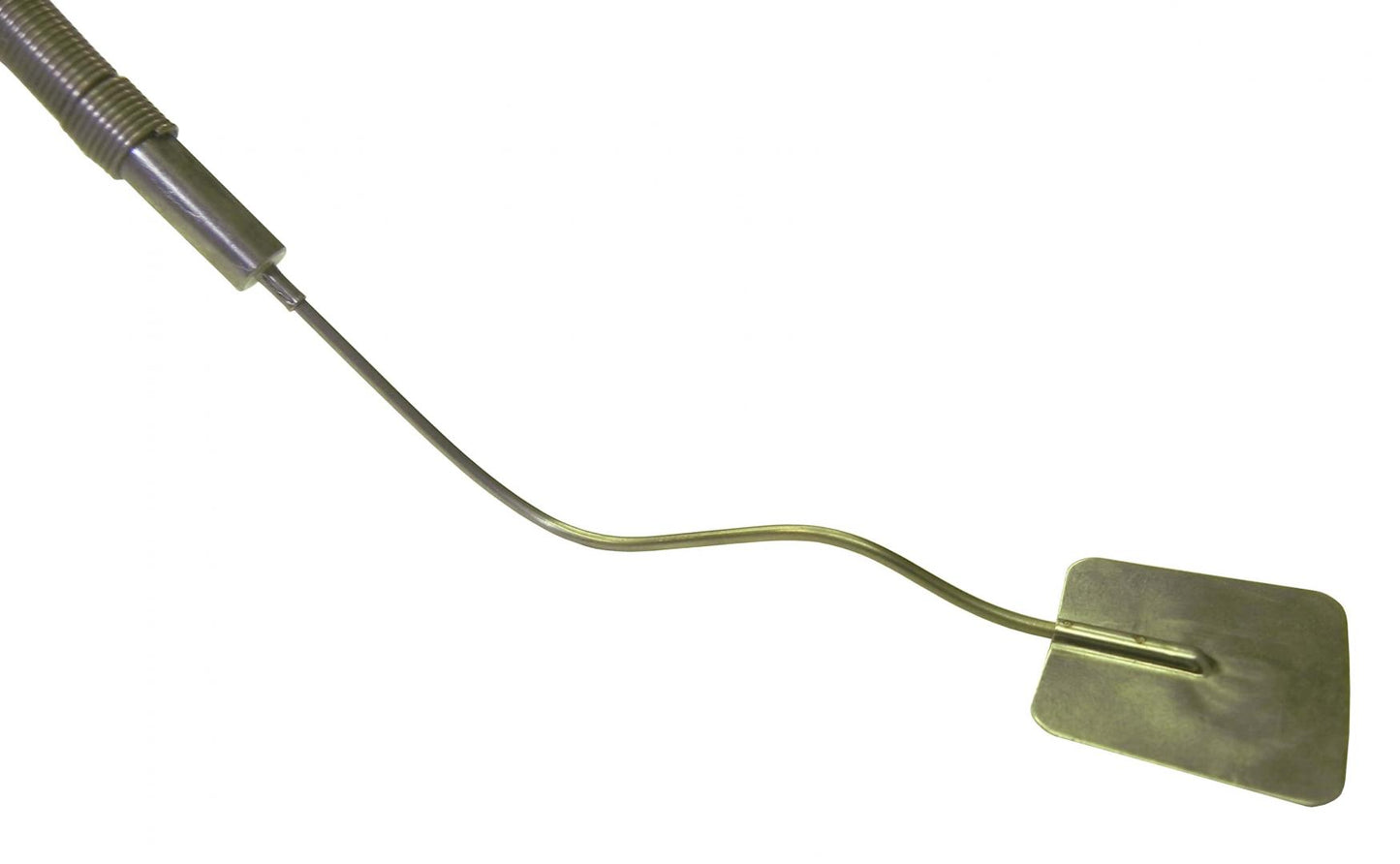

Flexible Stainless Steel pad, can be attached to flat or curved surface
Pad can be brazed, spot welded, or clamped to surface
For measuring surface temperature of exhaust pipe or manifold

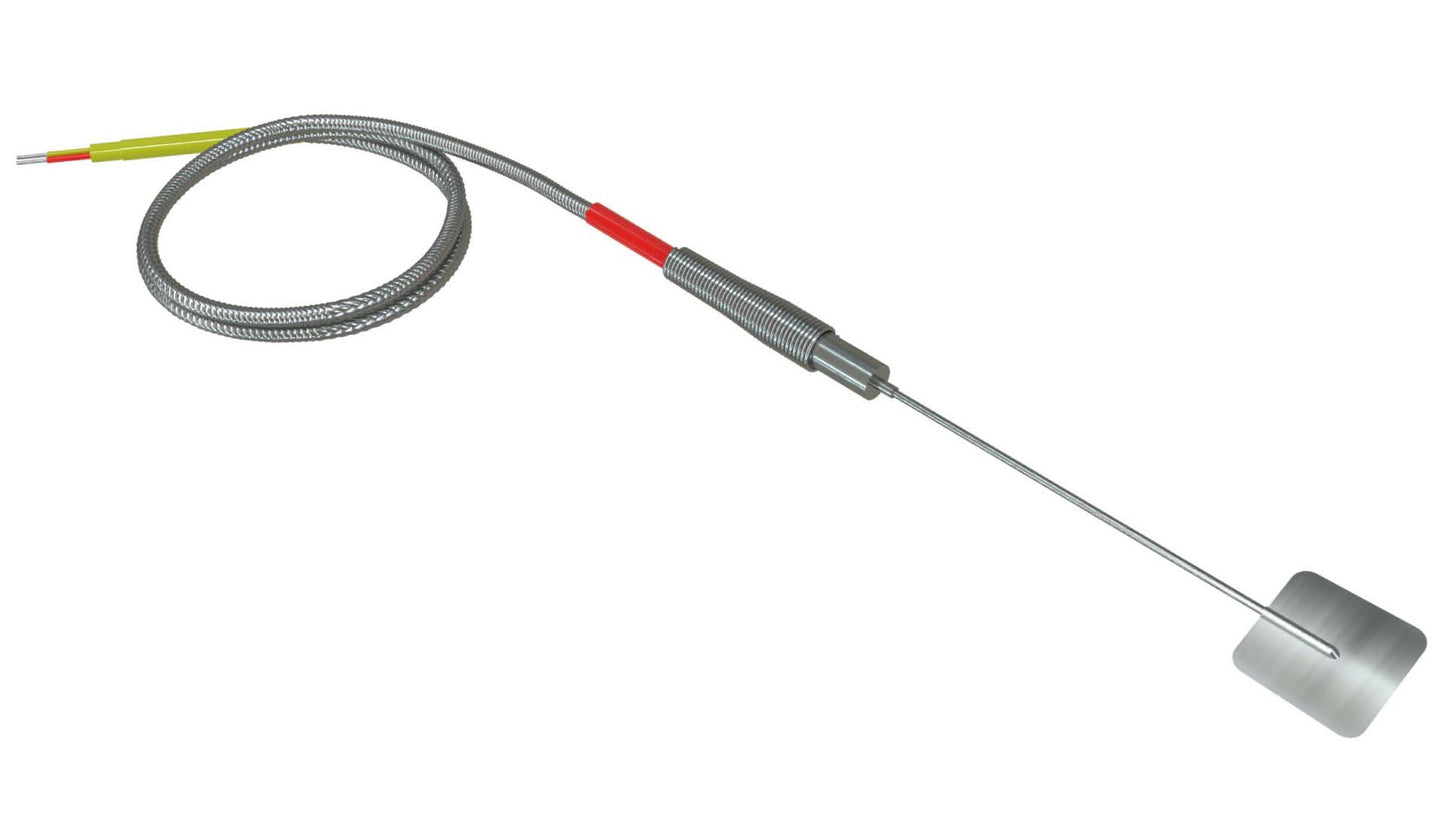

The Exhaust Manifold or Pipe Surface Temperature Probe is designed for use in Motorsports or R&D Testing applications to measure the relative exhaust gas temperature by way of attachment to the surface of the manifold or pipe. They can be customized for OEM applications as well. The probe is made in the USA with superior materials, designed to withstand even the most rigorous operating conditions.

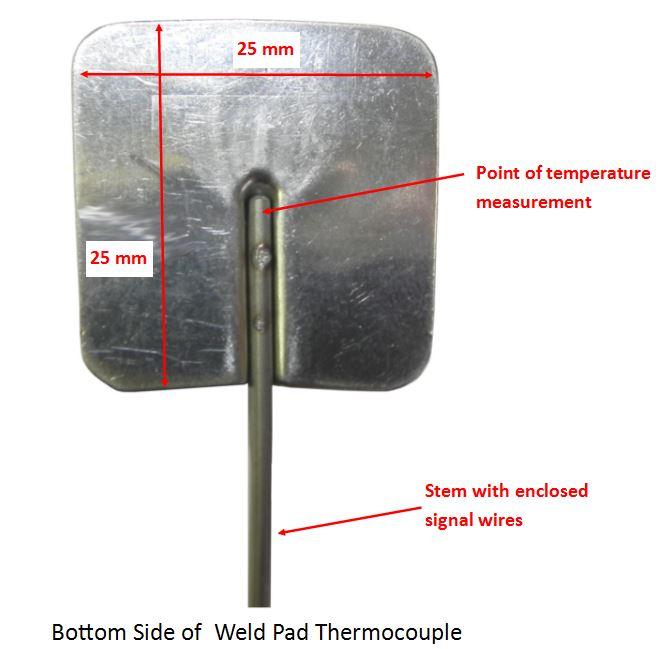

The pad is 1.0" x 1.0" x 0.01" (25mm x 25mm x 0.25mm) and made of 304 stainless steel. Pad can be brazed, spot welded, or clamped to surface and has a flexible cable stem.

The probe cable is over-braided in stainless steel for heavy-duty abrasion resistance. The signal wires are FEP insulated. Designed to deliver high performance, high temperature measurements, reliably and consistently.
